variable resistor
Resistore fisso a filo avvolto da 100W con tolleranza ±5% e resistore variabile di dimensioni personalizzabili
Product Description 100W variable resistor type+100 watt wirewound fixed resistor Namebraking resistorModelRXG20Performanceadjustable type & fixed typeShapeCylindrical ceramic tubeMaterialWirewoundRated power100 WResistance1ohms~5kResistance tolerance±5%DiameterD=28mmLengthL1=170mmMounting bracketsIncludingNon-standard sizeCan be customized Company Profile Sichuan Qixing Electronics CO.,LTD specialize in potentiometers, resistors and EMI filters for 13 years. Our products
BONENS RX20-50W-12R 50W 12 Ohm tubo ceramico Wirewound resistore regolabile variabile con tolleranza del 5%
Product Description 50W Ceramic Tube Wirewound Variable Resistor 12 ohm Specification Namebraking resistorModelRXG20Performancehigh powerShapeCylindrical ceramic tubeMaterialWirewoundRated power50WResistance12 ohmsResistance tolerance±5%DiameterD=28mmLengthL1=90mmMounting bracketsIncludingNon-standard sizeCan be customizedAdjustable typeCan be offered You may also like Company Profile
BONENS 2000 Watt tubo ceramico Wirewound resistore regolabile con 1 ohm ~ 10k ohm Intervallo e ± 5% Tolleranza
Product Description 1R 5R 8R 10R 50R 70R 100R Ceramic Tube wirewound Variable Resistor 2000 watt Specification NameAdjustable Wirewound ResistorsModelRX20TColorgreenAccessories : thickened Stainless bracket and GasketPower2000 WattResistance1 ohm ~10k ohmsResistance tolerance+/-5%Length430mmDiameter70mmServiceCan be customized according to customer's sizeMaterialEco-friendly paint ceramic tube Packing & Delivery You may interesting Company Profile Factroy Informations:Sichuan
Resistore a pellicola metallica da 1/4W con tolleranza dell'1% e montaggio superficiale per applicazioni di precisione
1% color ring resistance 1/6W 1/4W 1/2W 1W 2W 3W 5W Metal film resistor Product Description PICTURES : DIMENSIONS: Model NumberCarbon Film Resistance 1/4w 1w 2w 5wTypeCarbon Film ResistenceBrand NameTaihuaResistance0-22MSupplier TypeOriginal manufacturer, ODM, Agency, Retailer, OtherMedia Availabledatasheet, Photo, EDA/CAD Models, OtherTechnologyMetal FilmPackage TypeSurface MountResistance Tolerance+-1%Temperature Coefficient-55℃ to +155℃Operating Temperature±5PPM/°C ~

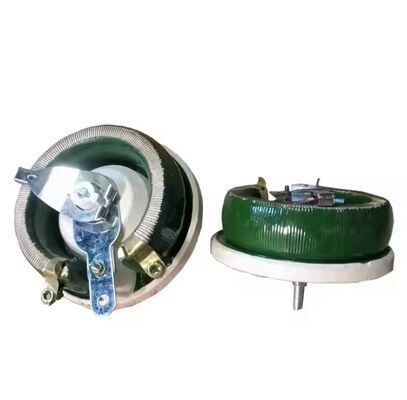

Resistenza variabile a disco BC1 per generatore di corrente elettrica della saldatrice 100W
BC1 disc adjustable resistance electric welding machine generator current adjustable resistance 100W product name: BC1 -type rotor -type variable resistor/BC1 disc adjustable resistor/BC1 disk variable resistor/BC1 variable resistor/BC1 porcelain disk resistor/BC1 porcelain disk resistor Circular disk resistor BC1 25W 50W 100W 200W 300W 1K adjustable potentiometer wire wound ceramic disk resistor product description: 1. TheBC1 series adjustable resistance is usually called a

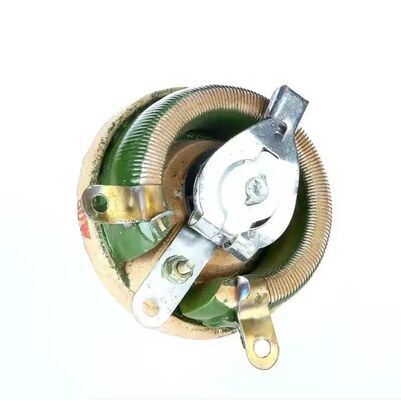

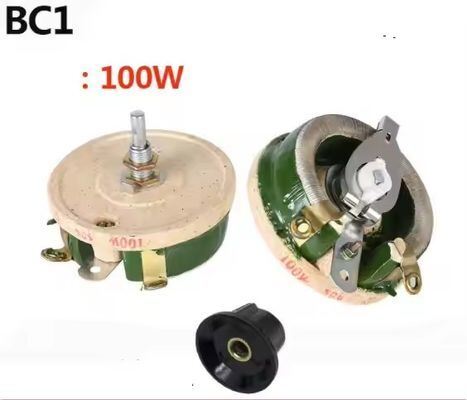

BC1 Resistore variabile a disco di porcellana con materiali ceramici personalizzabili 25W 50W 100W
product name: BC1 Porcelain Disk Variable Resistor with Customizable Ceramic Materials 25W 50W 100W product description: 1. TheBC1 series adjustable resistance is usually called a resistor or potentiometer, which can be used as two connections of the resistor, or as a potentiometer with three connection terminals. 2. On one resistance, you can use different resistance winding wires to make multiple resistance values. 3. It has characteristics such as large power, humidity
RV24YN20S resistore variabile rotativo a film di carbonio regolabile a potenziometro a giro singolo
RV24YN20S carbon film adjustable single-turn potentiometer rotary variable resistor 1K 2K 5K 10K 20K adjustable potentiometer Product Description Specification Electrical characteristic: Total resistance range B50Ω~B2MΩ A,C:1KΩ~2MΩ Resistance tolerance ±10% End resistance ≤3Ω Resistance taper B(Linear) A(Logarithm) C(Reverse log) Contact resistance variation 3% or 3Ω,whichever is greater Power rating B:0.25W/40℃,0W/85℃ AC:0.125W/40℃,0W/85℃ Max.input voltage B:DC315V or power

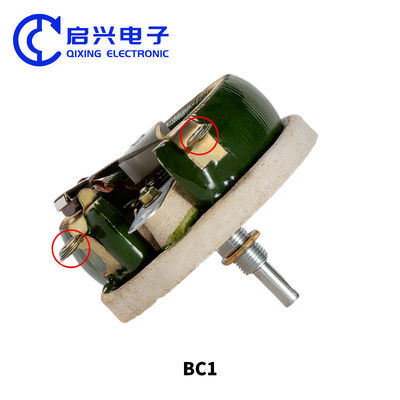

BC1 Disco ceramico Reostato 100W Resistenza regolabile 1Ω-10KΩ
BC1 Ceramic Disc Adjustable Resistance 100W Rheostat The BC-1 wire wound resistor features high resolution capability with a wide resistance range. Designed for durability, it offers excellent heat resistance, humidity resistance, and wear resistance characteristics. Suitable for voltage and current adjustment in power equipment and circuits not exceeding 380V AC or 220V DC. Technical Specifications Maximum working voltage: 1000V with 2500V insulation voltage Temperature rise
Potenziometro a trimmer multi-torno da 3296W con manopola da 8 mm per resistori regolabili da 1k-50k
Product Description 3296 multi-coil glass glaze adjustable potentiometer3296 multi-coil glass glaze adjustable potentiometer, 3296 has 6 models, 3296W,3296Y,3296X,3296Z,3296P,3296X-A,3296W-B stance value is 100R 200R 500R 1K 2K 5K 10K 20K 50K 100K 200K 250K 500K 1M 2M 3M 4M 5M. Specification Electrical CharacteristicsRange of nominal resistance10Ω~5MΩResistance tolerance±10%Terminal resistance≤±1%R or 2ΩContact resistance variation (CRV)≤±1%R or 3ΩInsulation resistance≥ 1GΩ
